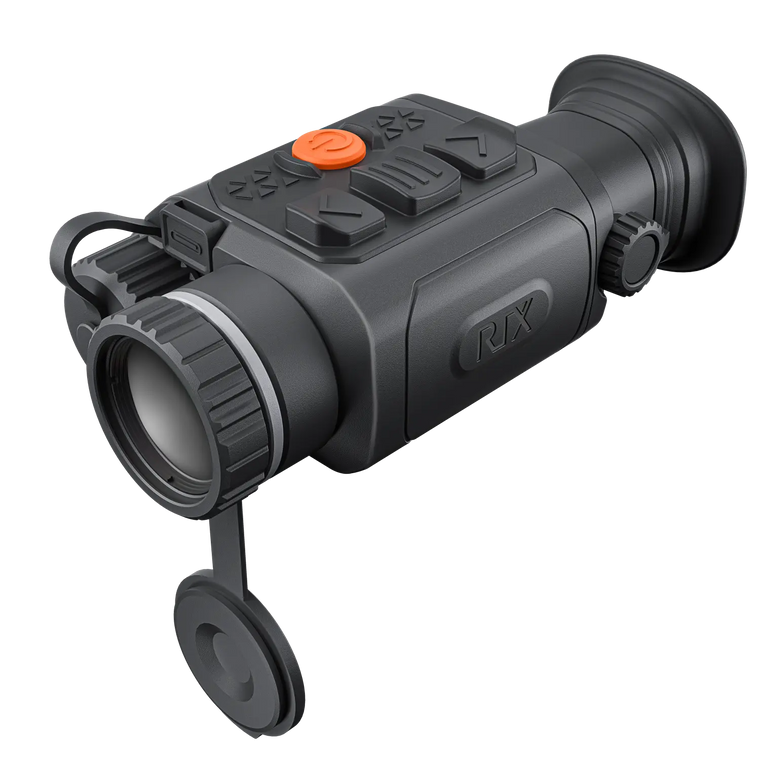

Rix Stride ST6 Lite Thermal Imaging Monocular

RIX STRIDE ST6 Lite 1x Thermal Imaging Monocular

The RIX Optics STRIDE ST6 Lite is built for handheld thermal detection in a compact and lightweight form. A 640×512 thermal sensor with sub 20 mK sensitivity helps you detect heat signatures at extended distances in low visibility conditions. With onboard recording, Wi Fi support, and up to 4 hours of runtime on a single 18650 battery, the STRIDE ST6 Lite gives you reliable performance in the field.

Rix Stride ST6 Lite Key Features

• 640×512 thermal sensor resolution
• 12μm pixel pitch
• Less than 20 mK NETD sensitivity
• 50 Hz refresh rate
• 25 mm F1.0 objective lens
• 1x to 6x magnification
• 1x, 2x, 4x digital zoom
• 1300 m detection range
• OLED display
• Video and photo recording
• 32 GB internal storage
• Wi Fi connectivity
• 18650 rechargeable battery
• Up to 4 hours runtime
• USB Type C external power supply
• IP67 waterproof rating

Specifications

• Sensor Resolution: 640 × 512
• Pixel Pitch: 12 μm
• NETD: < 20 mK
• Frame Rate: 50 Hz
• Objective Lens: 25 mm F1.0
• Magnification: 1x – 6x
• Field of View: 17.5° × 13.1°
• Detection Range: 1300 m
• Display Resolution: 1024 × 768 OLED
• Video Format: .mp4
• Photo Format: .jpg
• Storage: 32 GB
• Battery Type: 18650 Rechargeable
• Battery Life: Up to 4 Hours
• Operating Temperature: -20°C to +50°C
• Protection Rating: IP67
• Dimensions: 129 × 71 × 47 mm
• Weight: 205 g
